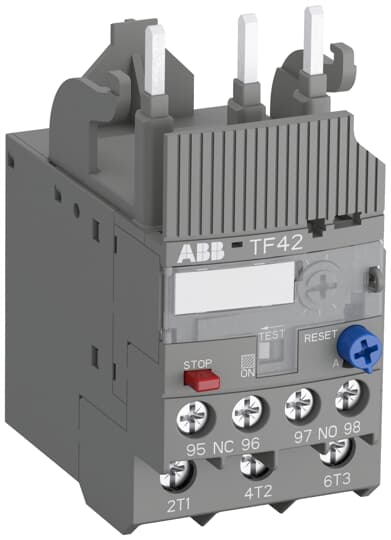

Thermal Overload Relay; (AF09 to AF38 Series contactors) 4.2 – 5.7 amp range
The TF series of thermal overload relays from ABB are an economical, electromechanical device for protection of motor circuits. These overloads are sized for the contactor frame size, so pay attention to the range of AF series contactors that each overload is compatible with. Use the filter to select the range of contactor you have or are buying so the page only displays overloads that will fit on your contactor. The TF overload offers fast, reliable protection for motors in the case of overload or phase failure. The device has trip class 10 and is rated for up to 600V AC/DC. The TF series includes ambient temperature compensation, trip contact (NC), signal contact (NO) auto or manual reset selectable, trip free mechanism, STOP function and a trip indicator light. The TF series mounts directly to the AF Series block contactors however, stand-alone mounting kits are available. If you have any questions selecting the proper overload for your contactor, please contact Springer Controls. We will be happy to help with your selection.
Weight 0.35 lbs AF CONTACTOR TYPE
OVERLOAD FITS CONTACTOR SIZE
Overload Current Range
