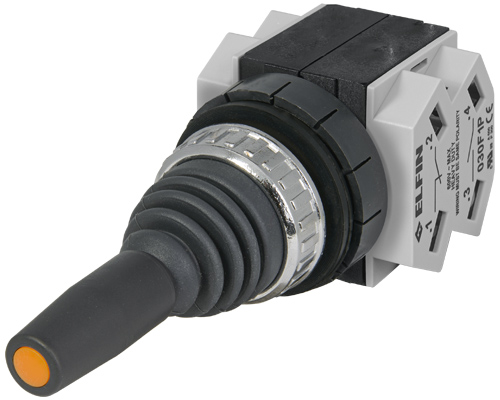

NE-030MPN2F1
30mm Joystick, 2 position with no center off position, maintained, 2NO / 2NC, no interlock
Out of stock
-
Additional Information
▼Springer Controls offers 30mm joysticks manufactured by New Elfin in Italy are ideal for industrial applications where rugged build and long operating life are requirements. Metal ring nuts to secure the operator to your panel ensure a strong and safe installation. The contacts use a combination of brass and nickel alloy with raised 1000/1000 silver pads to ensure excellent connections. All are UL, CSA and CE approved and comply with IEC 947.5.1, NFC 63140 and EN50007. Sized to fit in a standard NEMA sized 30mm pilot device hole
-
Specifications
▼Weight 0.326 lbs 30mm - Joystick # of Positions 2
30mm - Joystick Operation Maintained All Positions
30mm - Joystick Mechanical Interlock No Interlock
