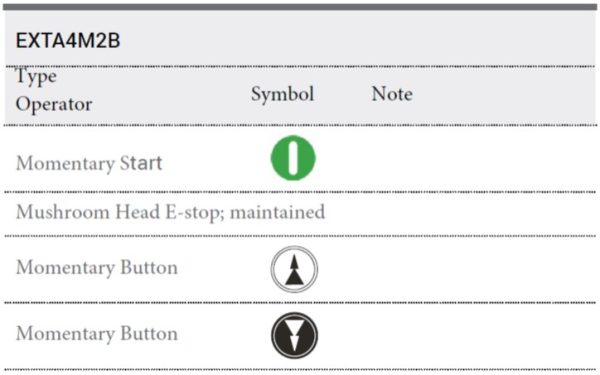

MIKE ATEX Pendant; 4 button, Momentary Start button, E-stop, (2) 2-speed Psh Bttn (Double Arrows Up-Down), cETLus
The Mike-X pendant is an explosion proof pendant designed for hazardous environments. The body is made of powder coated aluminum allowing it to be sturdy but still light weight. The Mike-X is certified for all Class I locations, and Class II, Division I, II, III, Groups E, F and G locations, as well as ATEX and IECEx zones 1, 2, 21, 22. The ingress protection rating is IP65 making it suitable for a wide range of applications where hazardous materials may be present.
• Motion buttons are 2 speed with NO contacts mechanically interlocked opposite functions
• Internal space is optimized for easy and quick wiring
• ¾” and 1” NPT fitting for cable entry
• Estops have 1NC contact
• Rated for use in temperatures from -20° to +60°C (-4° to 140°F)
If the part is showing OUT OF STOCK, please ask because we can often modify existing inventory into an alternative layout.
Weight 10 lbs Pendants- E-stop
