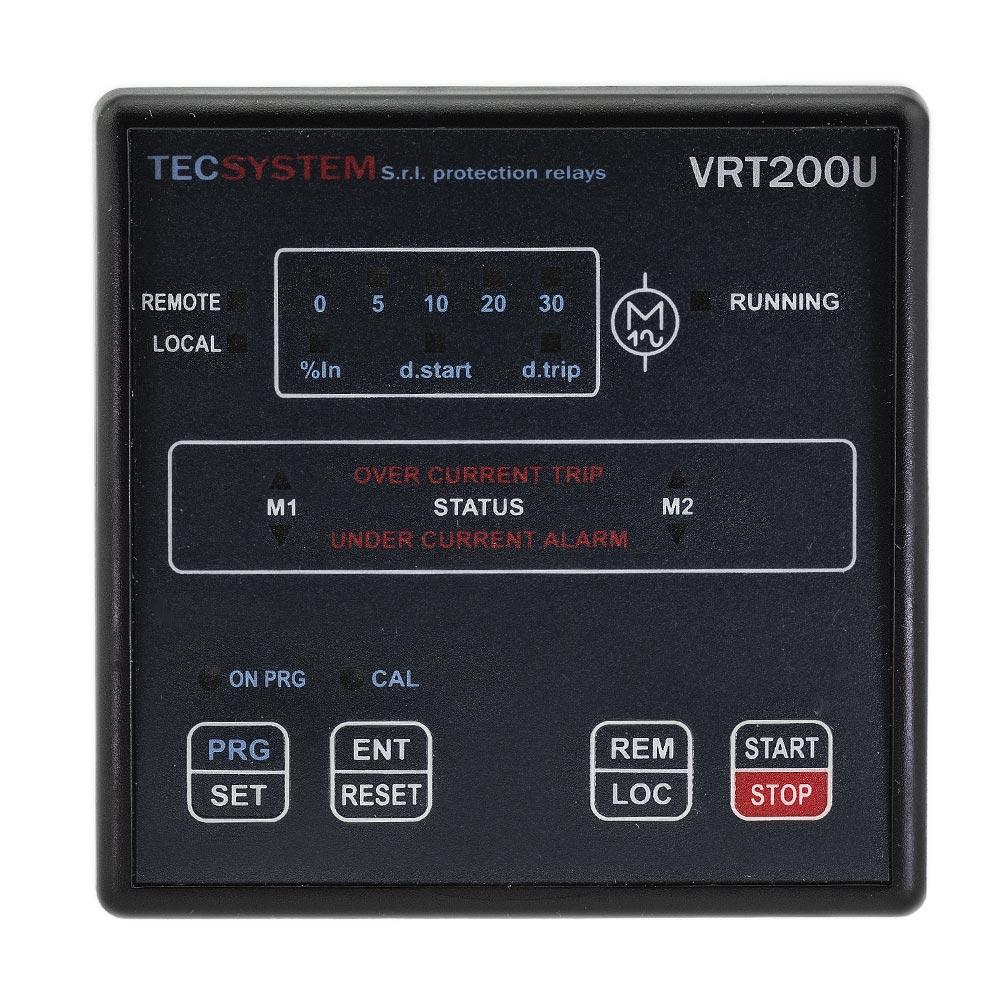

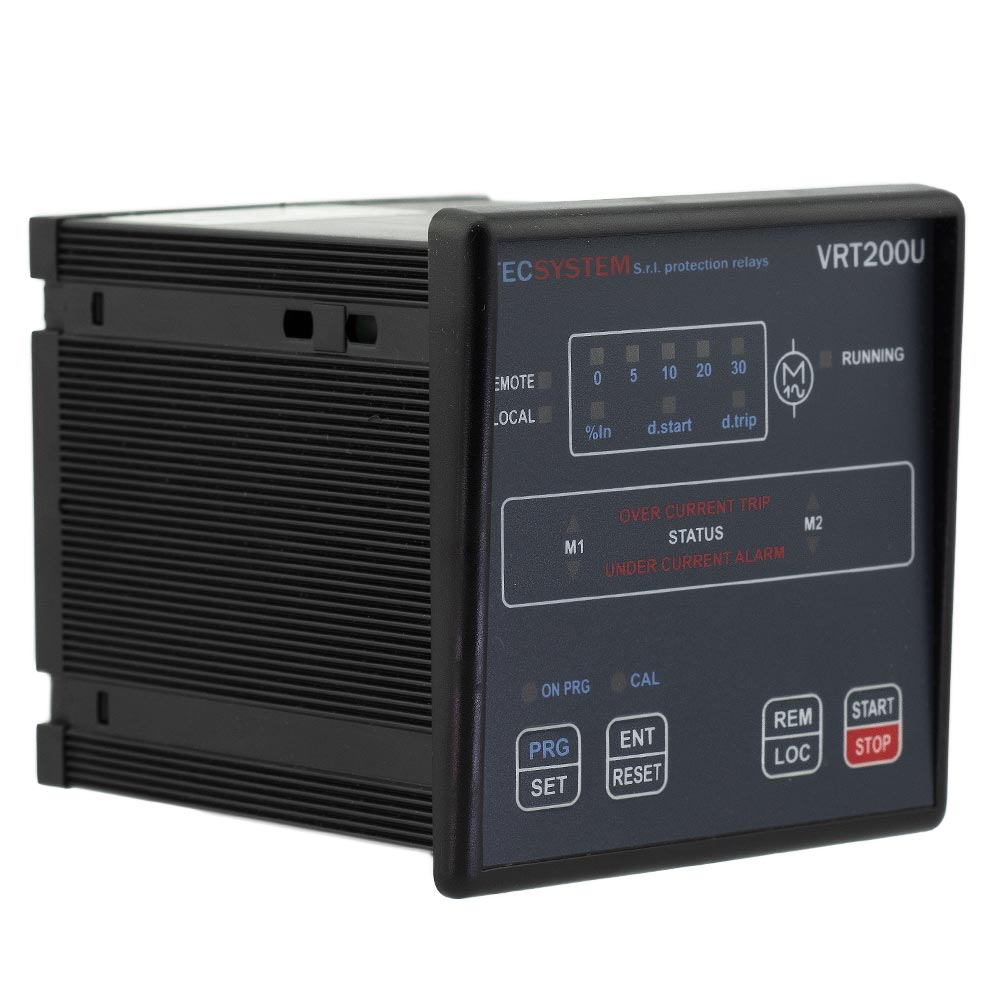

VRT200U – 12V input
Fan Controller; 2 Ptc inputs,12v AC-DC supply, 230v fan lines
In stock
-
Additional Information
▼The VRT200 is specifically designed to control cooling fan motors with the ability to motor faults by monitoring changes in current. This provides added protection to a transformer by monitoring the condition of the cooling fans. LEDs are used to indicate anomalies, and a fault relay can be used to send a signal remotely. Fans can be driven remotely via dry contact relays, or locally via the front push button.
The two outputs are each designed to control a 3fan barra system
-
Specifications
▼Weight 1.35 lbs Temp - # of Inputs 1-3
Temp - Output Type Relays Only
