T1048-ETH

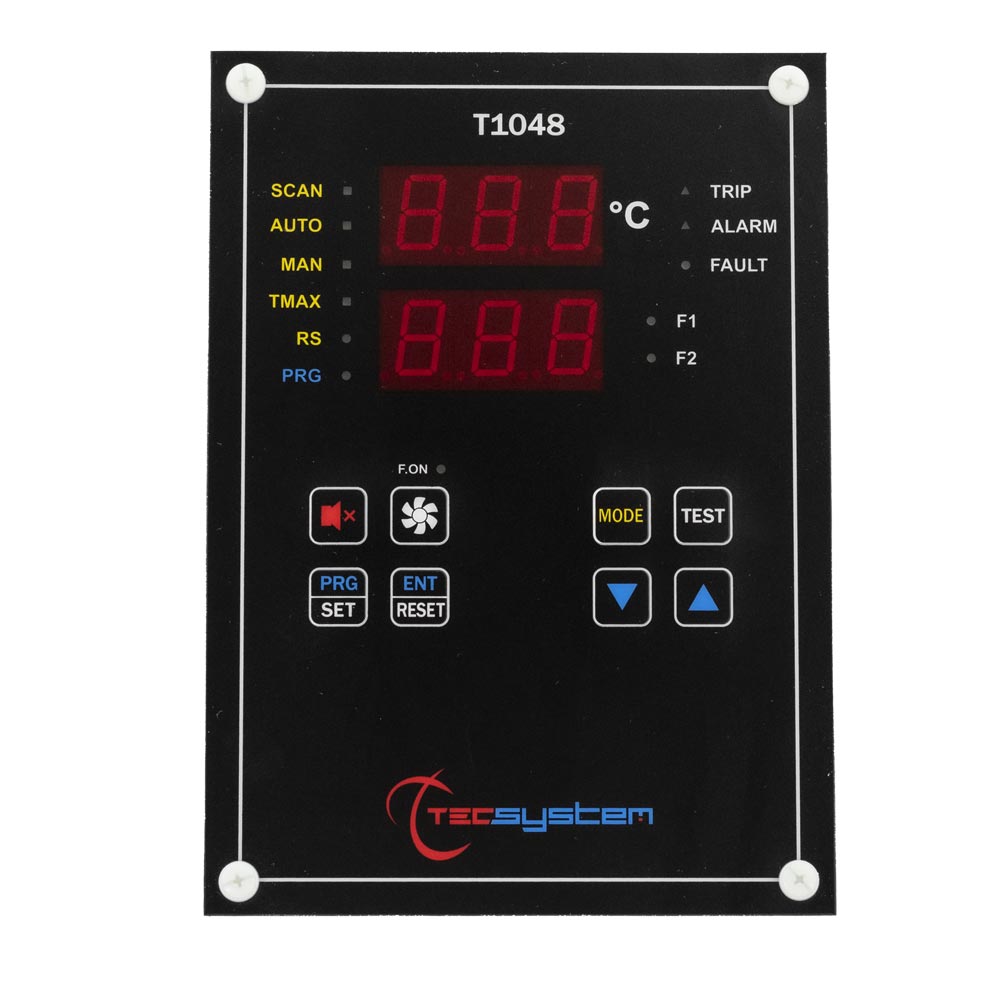

The T1048 temperature controller is a microprocessor based system with configurable inputs for a variety of temperature monitoring applications.  The T1048 includes Hysteresis, Failsafe and Intelifan functions.  All input channels are protected from electromagnetic interference, and the power supply is fuse protected making the T1048 rugged and durable for difficult applications.  The ETH version includes a Ethernet output in addition to the standard output relays

Features:

• Temperature monitoring from -20°C to 220°C (32° – 428°F) (Alarm settings 0°C to 220°C)
• 85-260VAC -DC input power
• VDC with reversible polarities
• Protection fuse 2.5A 5X20
• Rated for use in ambient temperatures from -20° to +60°C (-4° to 140°F)
• 4 input channels with the included RTD input card
• All potential free output relays rated for up to 10A @ 250VAC
• 2 alarm relays (Alarm & Trip)
• 2 alarm relays for fan control
• 1 alarm relay for sensor fault or self diagnostic fault

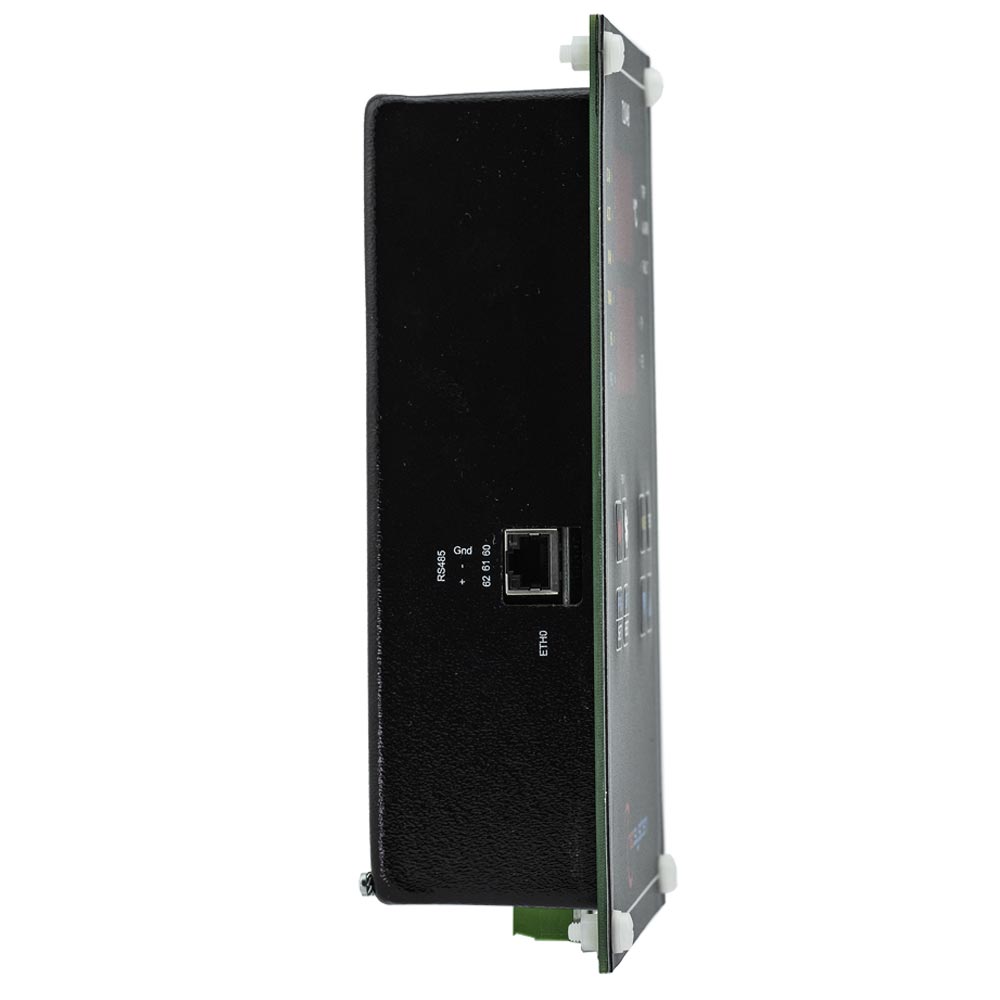

• Ethernet 10Base T/ 100 Base-TX Modbus TCP slave
