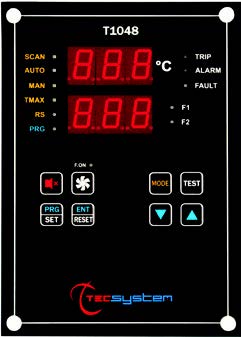

T1048-BASIC

The T1048 temperature controller is a microprocessor based system with configurable inputs for a variety of temperature monitoring applications.  A card can be inserted to accept 4 inputs from RTD Pt100 sensor, or an alternate card for 4 Tck thermocouple inputs.  The T1048 includes Hysteresis, Failsafe and Intelifan functions.  All input channels are protected from electromagnetic interference, and the power supply is fuse protected making the T1048 rugged and durable for difficult applications.  A variety of outputs are available to suit your requirements including relays, RS485, and Ethernet.

Features:

• Temperature monitoring from -20°C to 220°C (32° – 428°F) (Alarm settings 0°C to 220°C)
• 85-260VAC -DC input power
• VDC with reversible polarities
• Protection fuse 2.5A 5X20
• Rated for use in ambient temperatures from -20° to +60°C (-4° to 140°F)
• 4 configurable inputs by installing either the RTD input card or the Thermocouple input card
• All potential free output relays rated for up to 10A @ 250VAC
• 2 alarm relays (Alarm & Trip)
• 2 alarm relays for fan control
• 1 alarm relay for sensor fault or self diagnostic fault
