SU203M-C30

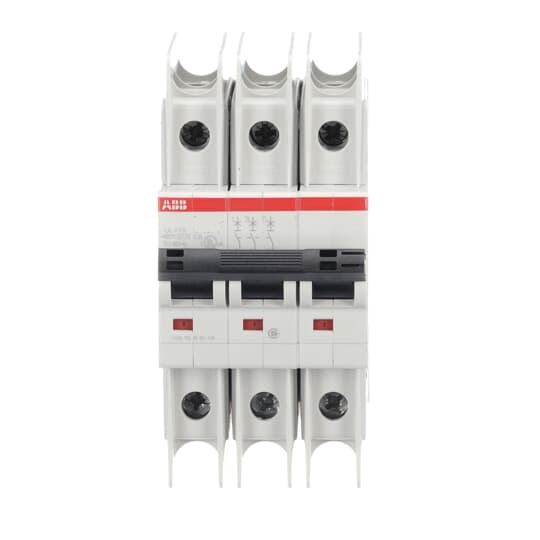

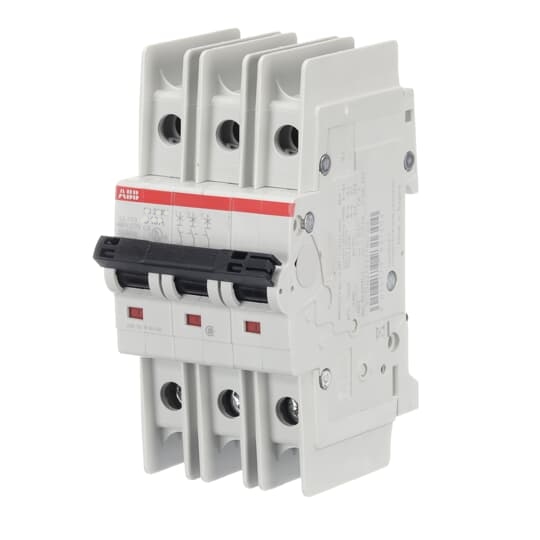

ABB Miniature Circuit Breaker (MCB); UL 489 Branch Circuit Protection, 30 Amp, 3 Pole, C-Curve (Standard Trip)

In stock

Additional Information
▼

The SU200M miniature circuit breakers offer a compact solution for protection requirements. The SU200 series devices are current-limiting according to UL 489 and DIN rail mounted. The SU200m series is available in 3 trip curves, C, Z, and K to provide maximum circuit protection. The breakers carry a UL, CSA, IEC and CE certifications along with other approvals making them suitable for worldwide use.
Features:
• UL current limiting
• Fast breaking time (2.3-2.5ms)
• Bus connection system
• Wide range of accessories
• DIN rail mounting with finger safe terminals
• UL 489 listed – branch circuit protection device UL file #E212323

Specifications
▼

Weight	2.59 lbs
CB-Poles	3 Pole
CB-Amp Rating	30A
CB-Trip Curve	C curve (standard trip)
CB-Type	UL489-AC
Circuit Breaker Brands	ABB
