ST203M-C50

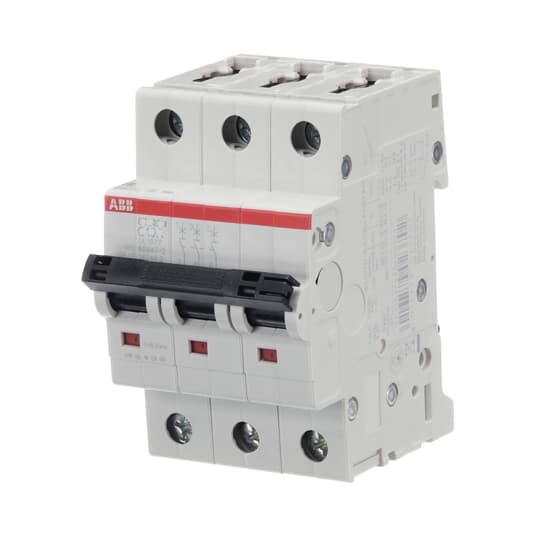

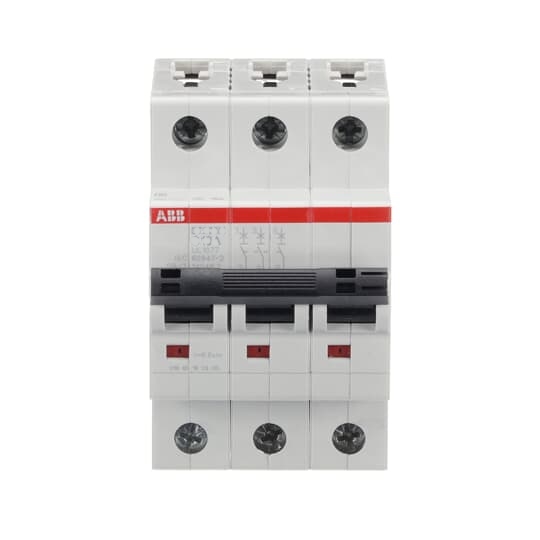

The ST 200 M miniature circuit breaker provides supplementary protection acc. to UL 1077 up to 480Y/277 V AC and 125 V DC. With a broad range of options and approvals acc. to the international standards UL, CSA and IEC, the ST 200 M is ideal for multiple applications and markets. It is also fully compatible with System pro M compact® accessories.
Features:
• Interrupt rating up to 10kA
• Certified For AC/DC use according to UL1077 and CSA 22.2 No. 235
• High calibration temp, 40°C for reduced derating in ICP applications
• Short circuit current rating U2 enables continuous high level short protection
• Laser printing permanently marks product details on device
• Clear contact position indication red/green
• Patented twin terminal for wiring up to 35mm2 w/ captive screws
• Rugged thermoplastic housing
