NT538-BASIC-LOW

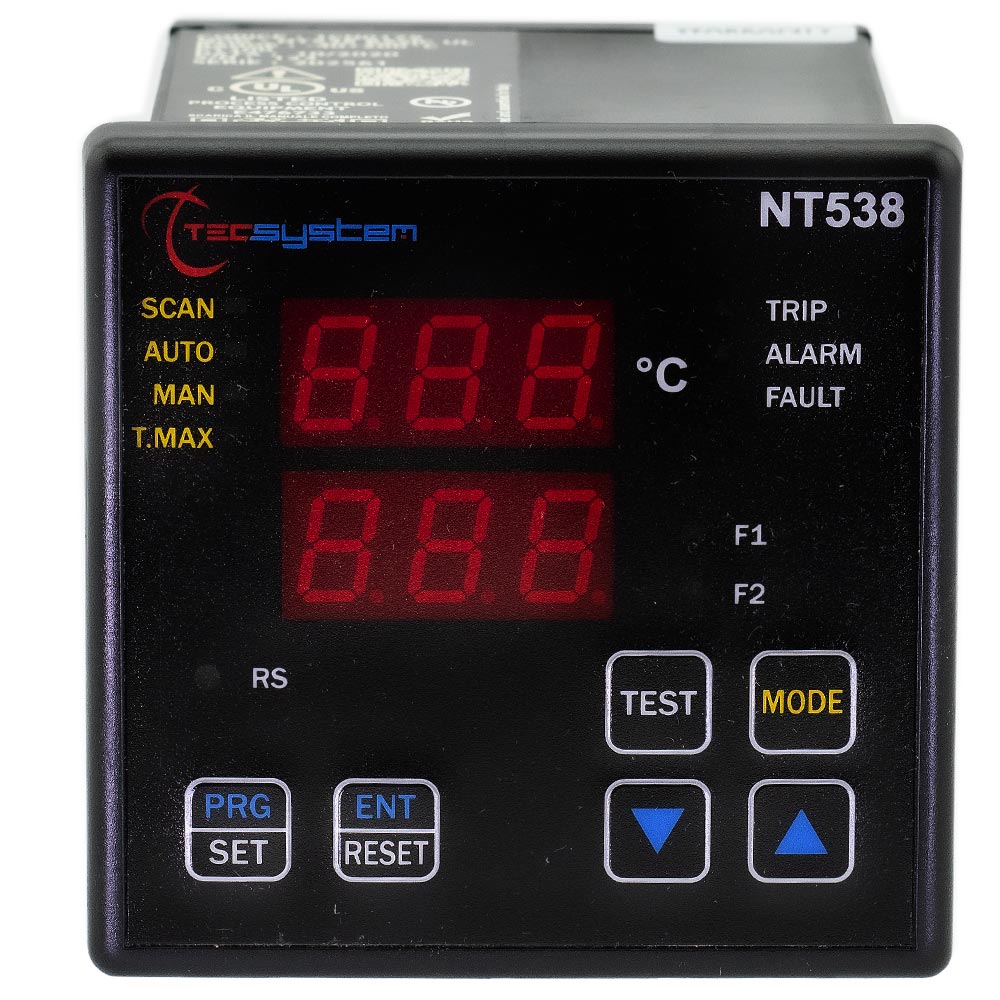

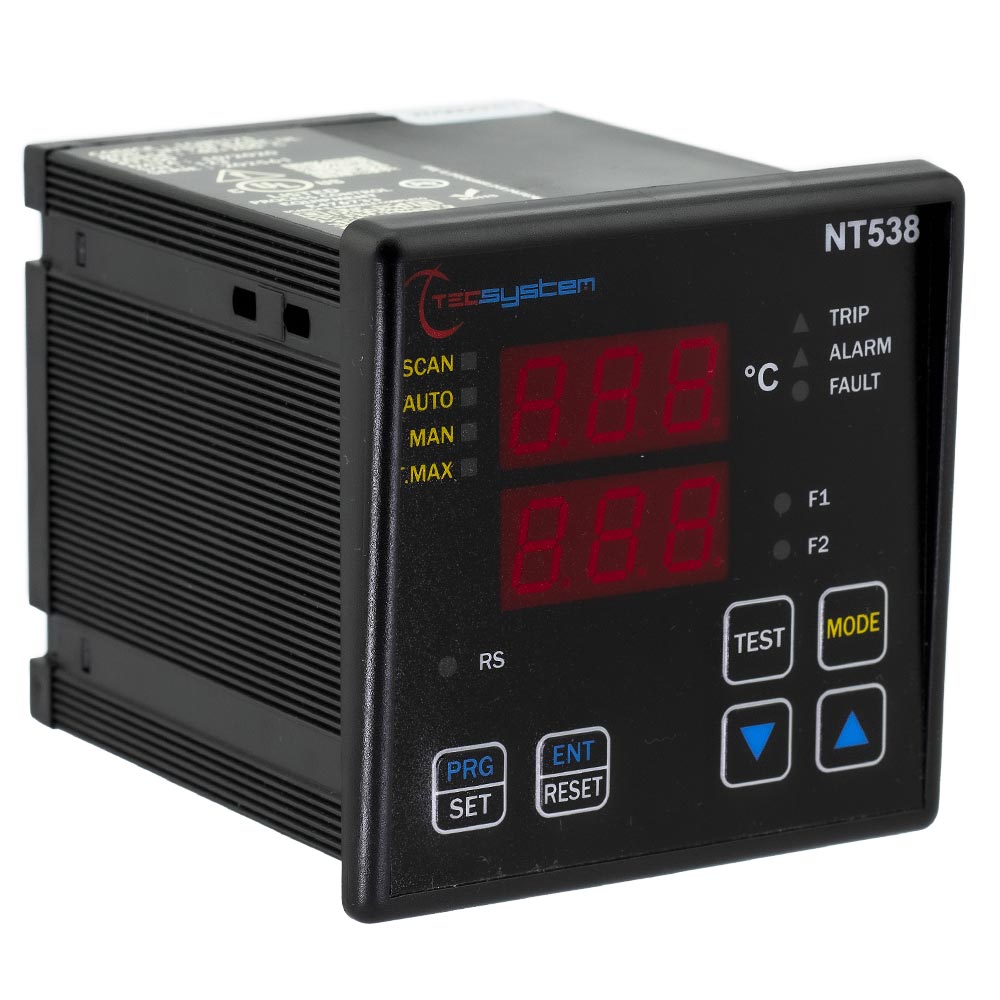

The NT538 is a microprocessor based temperature controller for motor drives with winding and bearing sensors. The NT538 has 8 input channels, allowing for monitoring temperature at up to 8 different locations.  Featuring a dual display with 3 digits for displaying temperatures, messages and channels, along with 3 LEDs to display the state of the alarms of the selected channels and 2 LEDs to display the state of two separate fans.  The LOW version is designed for colder climates to monitor lower temperatures.

Features:

• Temperature monitoring from -40°C to 200°C (-40° – 392°F)
• 24-240VAC-DC input power
• VDC with reversible polarities
• Rated for use in ambient temperatures from -20° to +60°C (-4° to 140°F)

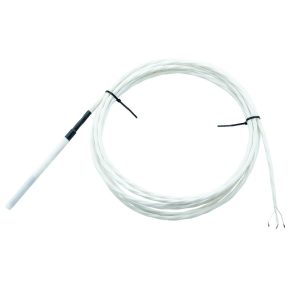

• 8 inputs RTD Pt100 3 wires
• All potential free output relays rated for up to 10A @ 250VAC
• 2 alarm relays (Alarm & Trip)
• 2 alarm relays for fan control
• 1 alarm relay for sensor fault
