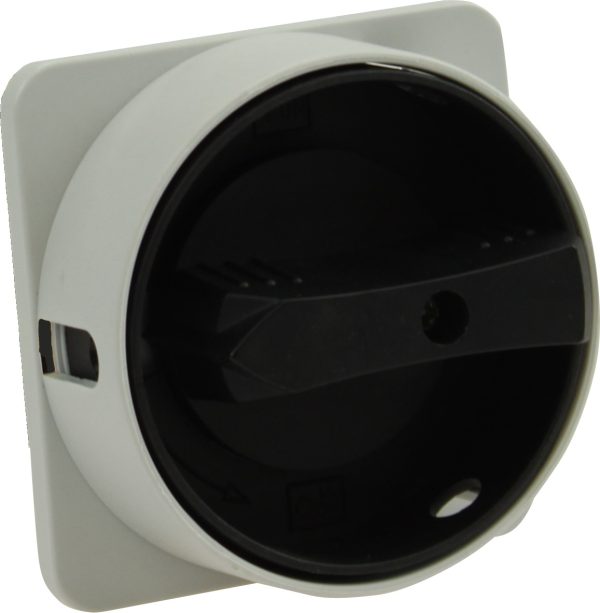

ML2-080-DB3
Disconnect Switch; 80A, Base Mount – Door Interlock, Black Disc Handle, 3 Padlock Holes
In stock
-
Additional Information
▼Springer Controls non-fusible disconnect switches are compact, and modular to be able to satisfy a wide range of applications. The switches are certified according to UL508 and IEC60947 for operation up to 600VAC. 3 poles are standard, with auxiliary contacts, additional poles, neutral or ground terminals available. Terminal finger guard covers are included for incoming terminals, outgoing terminal covers are optional.
-
Specifications
▼Disc & Cams - Rated Current 80Amp
Disc & Cams - Mounting Base Mount – Door Interlock
Disc & Cams - Handle Color Black/Silver
DISC & CAM HANDLE TYPE Disc (lockable)
Disc & Cams - Enclosed/Open Open
