ML0-032-DB2

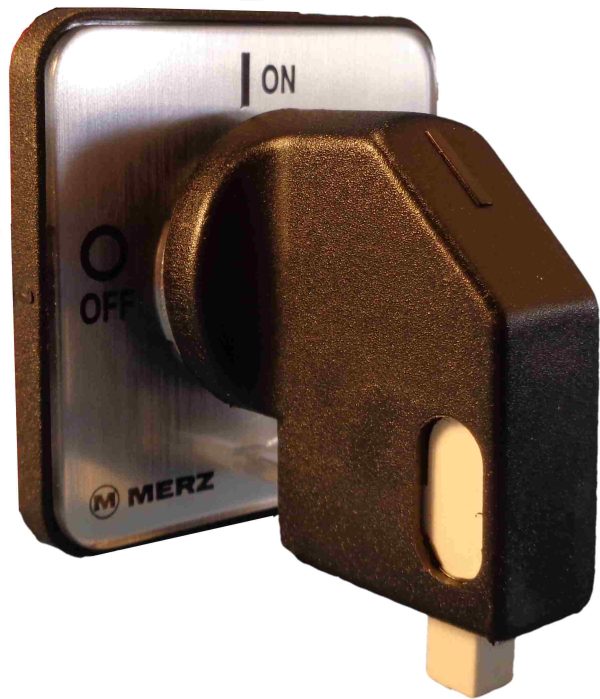

Disconnect Switch; 32A, Base Mount – Door Interlock, Black Lever Handle, 2 Padlock Holes
Out of stock
-
Additional Information
▼Springer Controls non-fusible disconnect switches are compact, and modular to be able to satisfy a wide range of applications. The switches are certified according to UL508 and IEC60947 for operation up to 600VAC. The ML0 series are designed as 4 poles are standard, and cannot accept additional switched neutral terminal, however auxiliary contacts (10A rating) and additional ground terminals available. Terminal finger guard covers are included for incoming terminals, outgoing terminal covers are optional.
-
Specifications
▼Weight 0.5 lbs Disc & Cams - Rated Current 32Amp
Disc & Cams - Mounting Base Mount – Door Interlock
Disc & Cams - Handle Color Black/Silver
DISC & CAM HANDLE TYPE Lever (lockable)
Disc & Cams - Enclosed/Open Open
