F201110001

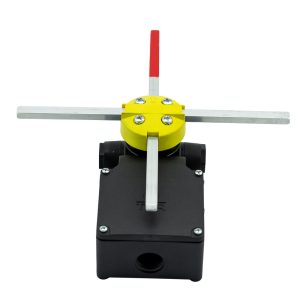

Position Limit Switch Arke; 4maintained positions, stop at 180deg each direction, 1NC+1NC staggered contacts, 200mm rods
In stock
-
Additional Information
▼The ARKE position limit switch is designed for controlling movement of overhead cranes, hoists and complex machine tools. The ARKE is rated IP65, IP66, and IP67 and is rated for operation in temperatures from -40°C to +80°C. Rated for mechanical life of 2 million operations, with positive opening NC contacts for safety functions. Cross rods are 6X8mm aluminum and 200mm long. Contacts are rated for 6A
-
Specifications
▼Weight 1.5 lbs
