A104/016-AR2

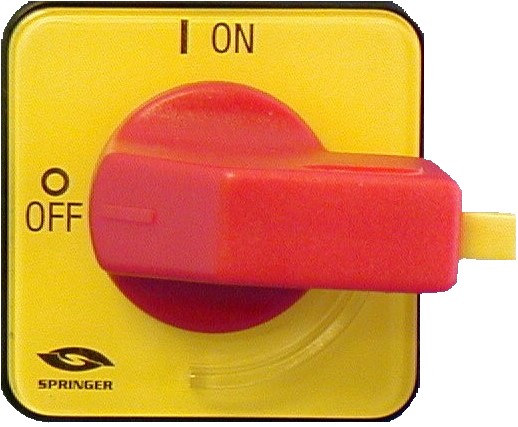

Disconnect Switch, 16A, Front Mount – 4 Hole, IP55, red lever handle, 2padlock holes.
In stock
-
Additional Information
▼Springer Controls non-fusible disconnect switches are compact, and modular to be able to satisfy a wide range of applications. The switches are certified according to UL508 and IEC60947 for operation up to 600VAC. 3 poles are standard, with auxiliary contacts, additional poles, neutral or ground terminals available. Terminal finger guard covers are included for incoming terminals, outgoing terminal covers are optional. The A series of disconnects carry an IP55 rating when installed into a panel.
-
Specifications
▼Weight 0.5 lbs Disc & Cams - Rated Current 16Amp
Disc & Cams - Mounting Front Mount – 4 Hole
Disc & Cams - Handle Color Red/Yellow
DISC & CAM HANDLE TYPE Lever (lockable)
Disc & Cams - Enclosed/Open Open
