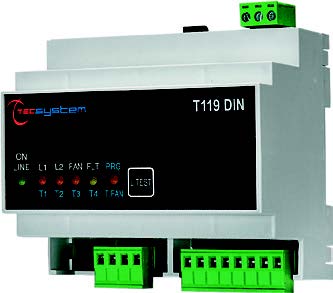

T119-DIN

The T119 temperature controller was developed to control the temperature of medium voltage cast resin and dry transformers.  It as 3 series of Ptc inputs (ALARM, TRIP, FAN) making it a simple and economical choice for reliable protection.  All inputs are protected against electromagnetic interference for consistent performance.  The T119 temperature controller has 2 output relays for temperature alarm/sensor or system fault, and another relay for fan control with a time delay off function.  The T119 is available in a DIN rail mount version and a front panel mount version to make installation simple and easy.

Features:

• Temperature monitoring from 60°C to 190°C (140° – 374°F)
• 24-240VAC -DC input power
• VDC with reversible polarities
• Rated for use in ambient temperatures from -20° to +60°C (-4° to 140°F)
• 3 Ptc Inputs (ALL1, ALL2, FAN)
• All potential free output relays rated for up to 5A @ 250VAC
• 2 alarm relays (ALL1/FAULT, ALL2)
• 1 alarm relay for fan control with adjustable time delay off
