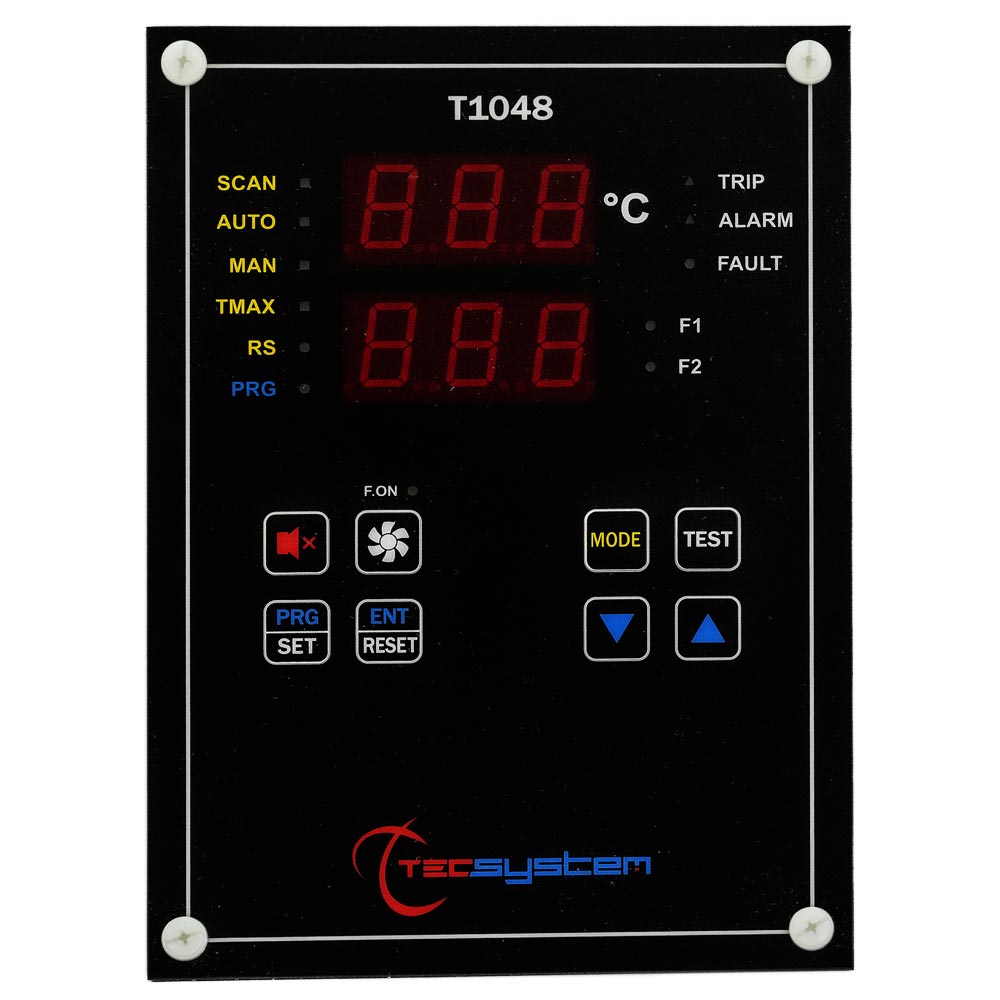

T1048-PT100 RS485

The T1048-PT100 RS485 temperature controller is a microprocessor based system with configurable inputs for a variety of temperature monitoring applications.  This unit is set up for Pt100 RTD sensor inputs.  The T1048 includes Hysteresis, Failsafe and Intelifan functions.  All input channels are protected from electromagnetic interference, and the power supply is fuse protected making the T1048 rugged and durable for difficult applications.  The RS485 version includes a digital RS485 output in addition to the standard relay outputs.

Features:

• Temperature monitoring from -20°C to 220°C (32° – 428°F) (Alarm settings 0°C to 220°C)
• 85-260VAC -DC input power
• VDC with reversible polarities
• Protection fuse 2.5A 5X20
• Rated for use in ambient temperatures from -20° to +60°C (-4° to 140°F)
• 4 inputs for Pt100 RTD sensors
• All potential free output relays rated for up to 10A @ 250VAC
• 2 alarm relays (Alarm & Trip)
• 2 alarm relays for fan control
• 1 alarm relay for sensor fault or self diagnostic fault

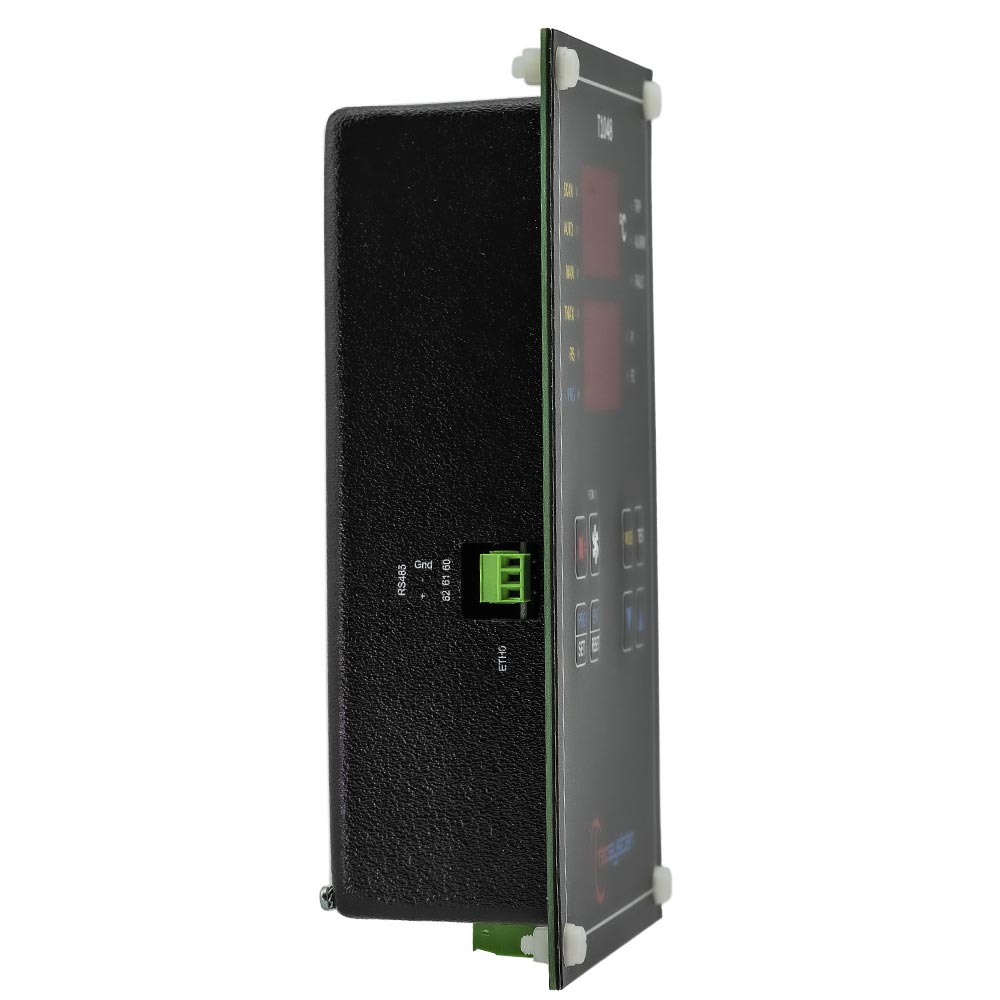

• RS485 output Modbus RTU
