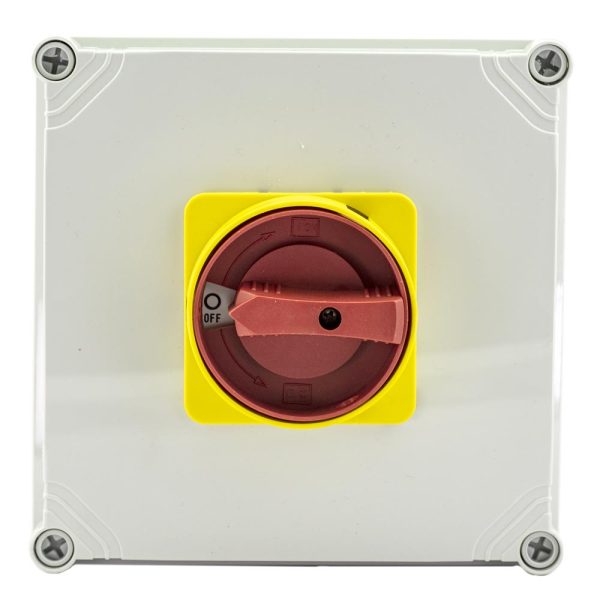

Disconnect Switch; 25A, Enclosed (IP65) , Red Disc Handle, 3 padlock Holes
Springer Controls enclosed non-fusible disconnect switches are compact, and modular to be able to satisfy a wide range of applications. The switches are certified according to UL508 and IEC60947 for operation up to 600VAC. The enclosures carry an IP65 rating, water & rain tight for outdoor installation. 3 poles are standard, with auxiliary contacts, additional poles, neutral or ground terminals available. Terminal finger guard covers are included for incoming terminals, outgoing terminal covers are optional.
Weight 4 lbs Disc & Cams - Rated Current
Disc & Cams - Handle Color
DISC & CAM HANDLE TYPE
Disc & Cams - Enclosed/Open
Disc & Cams - Mounting
Base Mount – No Door Interlock
